cb::graph::cbOperatorNode Struct Reference

A operator node. Generate all go task. Then pass the output to the next node's inputs. More...

#include <cbComputeGraph.hpp>

Inheritance diagram for cb::graph::cbOperatorNode:

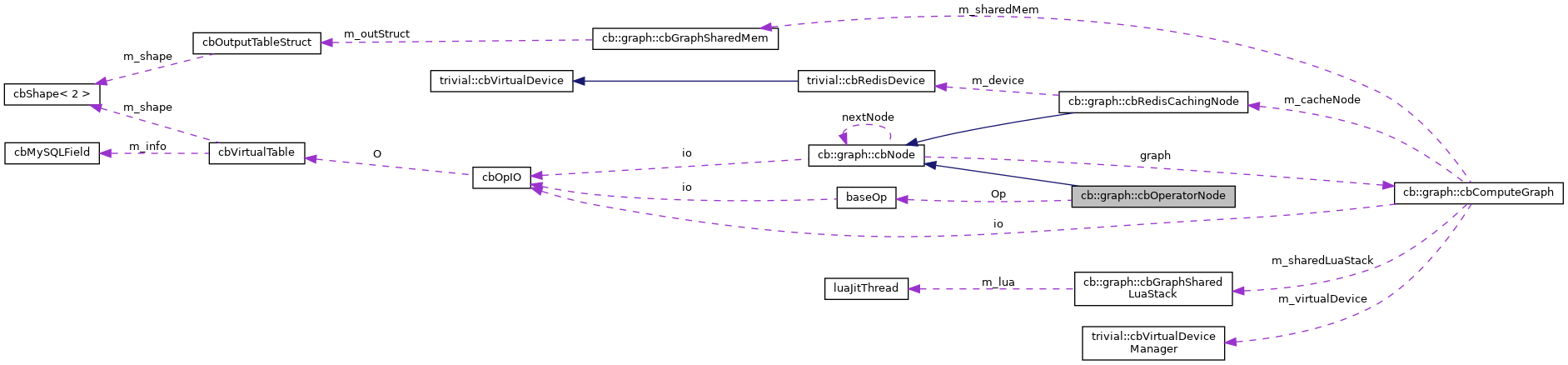

Collaboration diagram for cb::graph::cbOperatorNode:

Public Member Functions
	~cbOperatorNode () override
	cbOperatorNode (baseOp *op)
void *	generateTask () override
void	overload (sol::function &funcPtr)
Public Member Functions inherited from cb::graph::cbNode
virtual	~cbNode ()
	Destroy the cb Node object Virtual function. More...
	cbNode (const nodeType &nt)
void	PointTo (cbNode *ptr)

Public Attributes
friend	cbComputeGraph
baseOp *	Op
Public Attributes inherited from cb::graph::cbNode
cbOpIO	io
bool	isFinalOutput = false
bool	visited = false
nodeType	nodeT
void *	task = nullptr
cbNode *	nextNode = nullptr
cbComputeGraph *	graph = nullptr

Additional Inherited Members
Static Public Member Functions inherited from cb::graph::cbNode
static WFMySQLTask *	asSQLTask (void *metaTask)
static WFGoTask *	asGoTask (void *metaTask)

Detailed Description

A operator node. Generate all go task. Then pass the output to the next node's inputs.

Definition at line 313 of file cbComputeGraph.hpp.

Constructor & Destructor Documentation

~cbOperatorNode()

cb::graph::cbOperatorNode::~cbOperatorNode ( )

override

Definition at line 141 of file cbComputeGraph.cpp.

References baseOp::luaOverrideFunc, and Op.

cbOperatorNode()

cb::graph::cbOperatorNode::cbOperatorNode

(

baseOp *

op

)

Definition at line 146 of file cbComputeGraph.cpp.

References cb::graph::Operator.

Member Function Documentation

generateTask()

void * cb::graph::cbOperatorNode::generateTask ( )

overridevirtual

Returns

void*

Implements cb::graph::cbNode.

Definition at line 148 of file cbComputeGraph.cpp.

References baseOp::execMain(), cbOpIO::I, baseOp::io, cb::graph::cbNode::io, cb::graph::cbNode::nextNode, cbOpIO::O, Op, and cb::graph::cbNode::task.

Here is the call graph for this function:

overload()

void cb::graph::cbOperatorNode::overload

(

sol::function &

funcPtr

)

Parameters

funcPtr

The functions belong to lua.

Definition at line 172 of file cbComputeGraph.cpp.

Member Data Documentation

cbComputeGraph

friend cb::graph::cbOperatorNode::cbComputeGraph

Definition at line 314 of file cbComputeGraph.hpp.

Op

baseOp* cb::graph::cbOperatorNode::Op

Definition at line 333 of file cbComputeGraph.hpp.

Referenced by cb::graph::cbComputeGraph::cbComputeGraph(), generateTask(), and ~cbOperatorNode().

---

The documentation for this struct was generated from the following files:

• /home/wang/covalentBond/src/core/server/task/cbComputeGraph.hpp
• /home/wang/covalentBond/src/core/server/task/cbComputeGraph.cpp
