cb::graph::cbRedisCachingNode Struct Reference

#include <cbComputeGraph.hpp>

Inheritance diagram for cb::graph::cbRedisCachingNode:

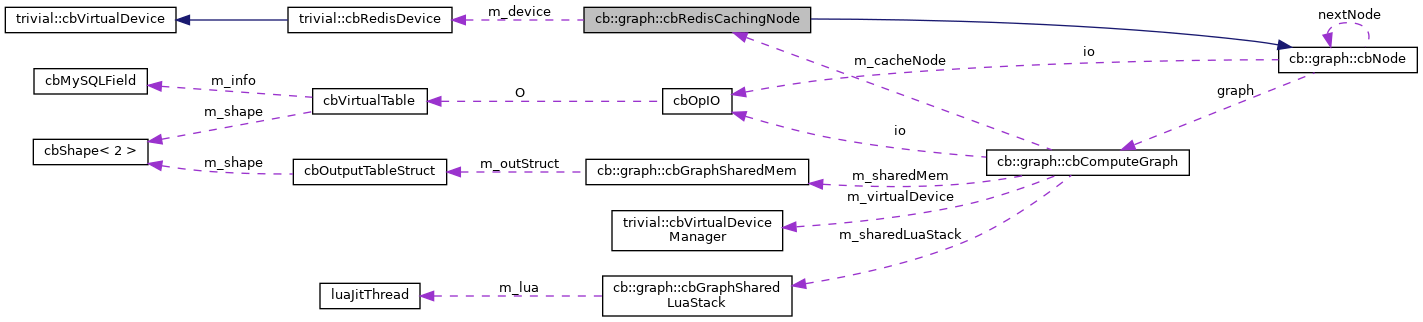

Collaboration diagram for cb::graph::cbRedisCachingNode:

Public Member Functions
	~cbRedisCachingNode () override final
	cbRedisCachingNode ()=delete
	cbRedisCachingNode (int32_t idx)
	cbRedisCachingNode (const cbRedisCachingNode &v)=delete
cbRedisCachingNode	operator= (const cbRedisCachingNode &v)=delete
void *	generateTask () override final
WFRedisTask *	_generateSetTask (const std::vector< std::string > &params, const redis_callback &callback_func=nullptr, void *usrData=nullptr, int32_t retryTimes=3)
Public Member Functions inherited from cb::graph::cbNode
virtual	~cbNode ()
	Destroy the cb Node object Virtual function. More...
	cbNode (const nodeType &nt)
void	PointTo (cbNode *ptr)

Public Attributes
friend	cbComputeGraph
Public Attributes inherited from cb::graph::cbNode
cbOpIO	io
bool	isFinalOutput = false
bool	visited = false
nodeType	nodeT
void *	task = nullptr
cbNode *	nextNode = nullptr
cbComputeGraph *	graph = nullptr

Private Member Functions
void	setRedisDevice (trivial::cbRedisDevice *device=nullptr)

Private Attributes
int32_t	m_idx
trivial::cbRedisDevice *	m_device = nullptr

Additional Inherited Members
Static Public Member Functions inherited from cb::graph::cbNode
static WFMySQLTask *	asSQLTask (void *metaTask)
static WFGoTask *	asGoTask (void *metaTask)

Detailed Description

Definition at line 286 of file cbComputeGraph.hpp.

Constructor & Destructor Documentation

~cbRedisCachingNode()

cb::graph::cbRedisCachingNode::~cbRedisCachingNode ( )

finaloverride

Definition at line 126 of file cbComputeGraph.cpp.

cbRedisCachingNode() [1/3]

cb::graph::cbRedisCachingNode::cbRedisCachingNode ( )

delete

cbRedisCachingNode() [2/3]

cb::graph::cbRedisCachingNode::cbRedisCachingNode

(

int32_t

idx

)

Definition at line 124 of file cbComputeGraph.cpp.

References cb::graph::Output.

cbRedisCachingNode() [3/3]

cb::graph::cbRedisCachingNode::cbRedisCachingNode ( const cbRedisCachingNode &  v )

delete

Member Function Documentation

_generateSetTask()

WFRedisTask * cb::graph::cbRedisCachingNode::_generateSetTask	(	const std::vector< std::string > &	params,
		const redis_callback &	callback_func = nullptr,
		void *	usrData = nullptr,
		int32_t	retryTimes = 3
	)

Definition at line 133 of file cbComputeGraph.cpp.

References m_device, and trivial::cbRedisDevice::set().

Referenced by cb::graph::cbComputeGraph::generateGraphTask().

Here is the call graph for this function:

Here is the caller graph for this function:

generateTask()

void * cb::graph::cbRedisCachingNode::generateTask ( )

finaloverridevirtual

Implements cb::graph::cbNode.

Definition at line 128 of file cbComputeGraph.cpp.

operator=()

cbRedisCachingNode cb::graph::cbRedisCachingNode::operator= ( const cbRedisCachingNode &  v )

delete

setRedisDevice()

void cb::graph::cbRedisCachingNode::setRedisDevice ( trivial::cbRedisDevice *  device = nullptr )

private

Definition at line 139 of file cbComputeGraph.cpp.

References m_device.

Referenced by cb::graph::cbComputeGraph::createRedisCachingNode().

Here is the caller graph for this function:

Member Data Documentation

cbComputeGraph

friend cb::graph::cbRedisCachingNode::cbComputeGraph

Definition at line 287 of file cbComputeGraph.hpp.

m_device

trivial::cbRedisDevice* cb::graph::cbRedisCachingNode::m_device = nullptr

private

Definition at line 305 of file cbComputeGraph.hpp.

Referenced by _generateSetTask(), and setRedisDevice().

m_idx

int32_t cb::graph::cbRedisCachingNode::m_idx

private

Definition at line 304 of file cbComputeGraph.hpp.

---

The documentation for this struct was generated from the following files:

• /home/wang/covalentBond/src/core/server/task/cbComputeGraph.hpp
• /home/wang/covalentBond/src/core/server/task/cbComputeGraph.cpp
